5A DC-DC 可調式降壓轉換器 XL4015 4-38V 至 1.25-36V 降壓電源穩壓器電源模組

Adjustable Buck Converter
This product features an adjustable buck converter, allowing you to modify the output voltage to suit your specific needs.
XL4015 Power Module
The XL4015 power module ensures reliable and efficient power supply, making it an ideal choice for various applications.
Wide Voltage Range
With a wide voltage range of 4-38V to 1.25-36V, this power supply can cater to a variety of power requirements.
Step Down Power Supply
The step down power supply feature allows for a gradual reduction in voltage, preventing damage to sensitive electronics.
Efficient Motor Protector
Designed as an efficient motor protector, this product helps to extend the lifespan of your motors by reducing wear and tear.
High-Quality Components
Constructed with high-quality components, this power supply offers superior performance and longevity.

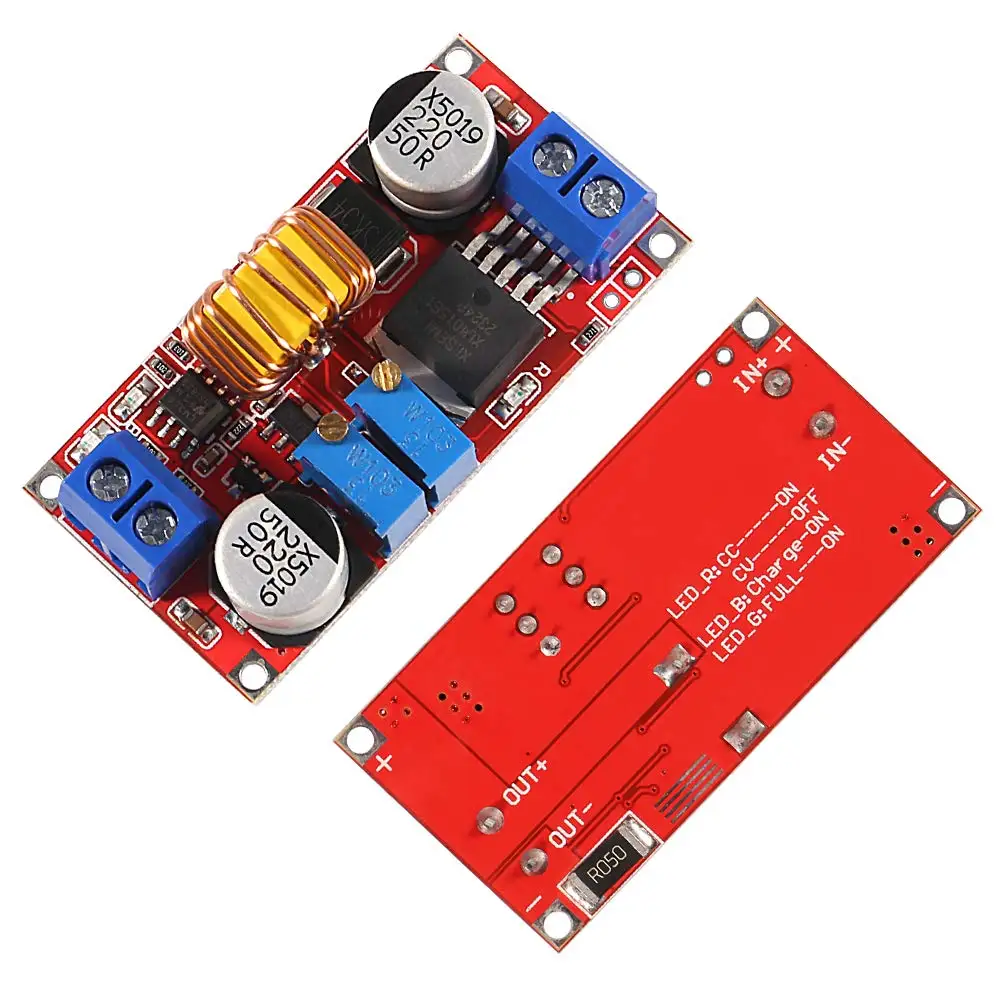

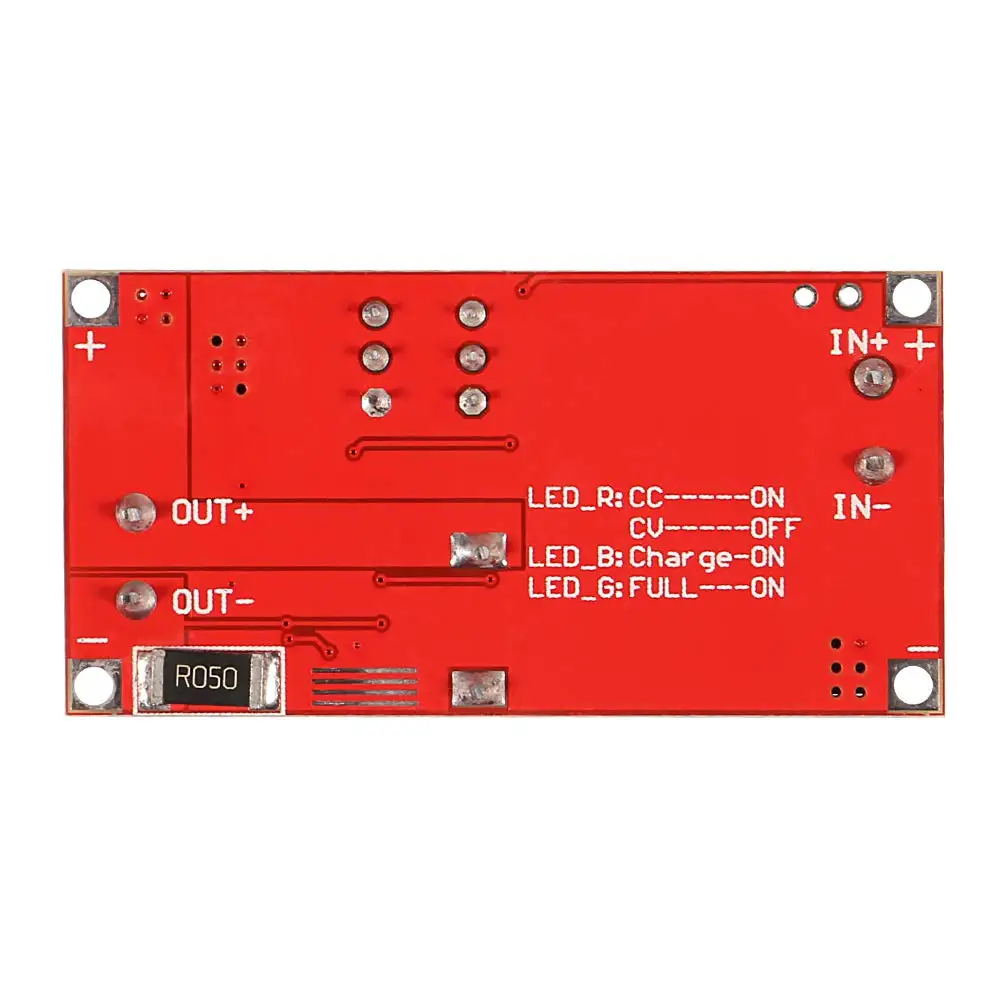

3pcs 5A DC-DC Adjustable Buck Converter XL4015 4-38V to 1.25-36V Step Down Power Supply Voltage Regulator Power Module
Features:
Specifications
Input voltage: 4 -38 V
Output voltage:1.25 -36 V continuously adjustable
Output current:Adjustable maximum 5A
Output power:Max 75 W
Working temperature:-40 ~ ++ 85 degrees
Working frequency:180 KHz
Turnover efficiency:Maximum 96%
Short circuit protection:(Limited flow 8A)
About temperature protection:Yes (about temperature, automatic turn off output).
Input Reverse Connection Protection:No, if necessary, input a high flow diode into the input.
Installation:4 3mm wires.
Connection mode:Terminal or welding terminal, V -IN as input and V -OUT as output.
Module size:Long 61.7mm width 26.2mm high 15mm
Package includes:
3 pcs 5A DC to DC CC CV Lithium Battery Step down Charge Board
