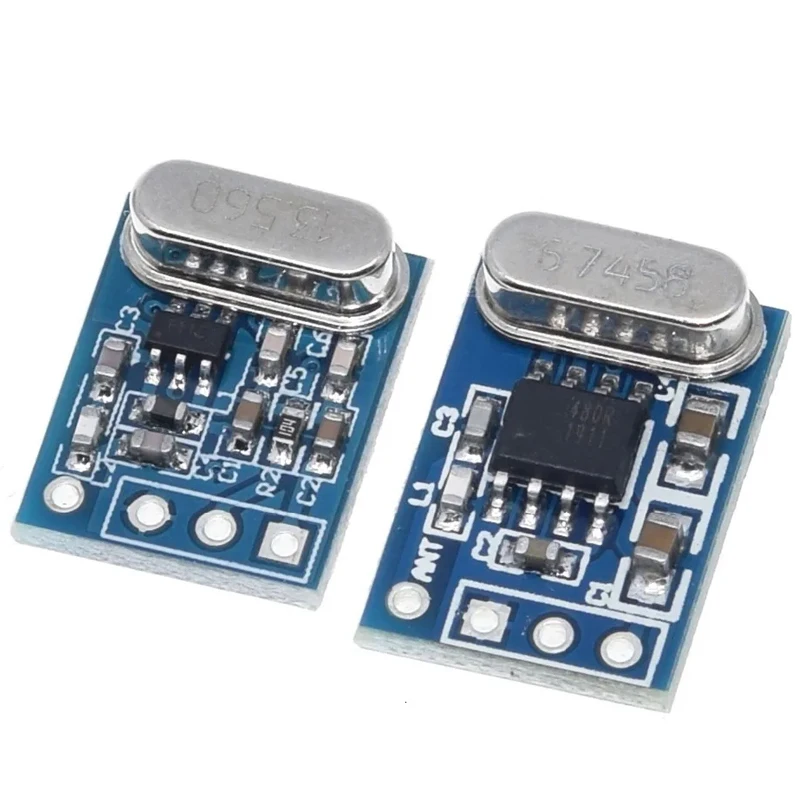

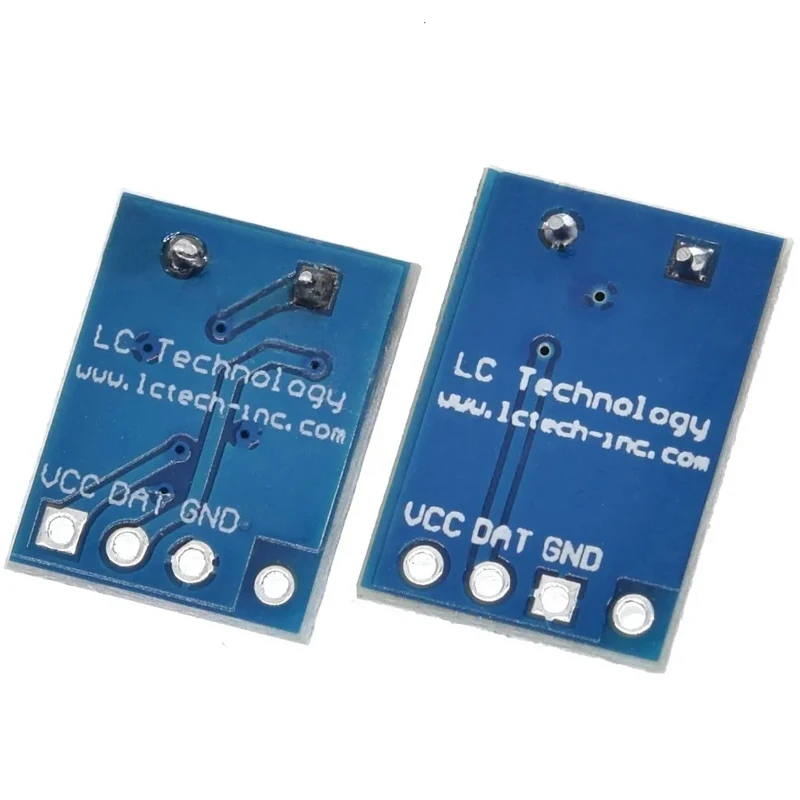

SYN480R F115 433M wireless remote control transmitter and receiver wireless transmitter and receiver module wireless module 1
SYN480R F115 433M wireless remote control transmitter and receiver wireless transmitter and receiver module wireless module 2
SYN480R F115 433M wireless remote control transmitter and receiver wireless transmitter and receiver module wireless module 3
SYN480R F115 433M wireless remote control transmitter and receiver wireless transmitter and receiver module wireless module 4
SYN480R F115 433M wireless remote control transmitter and receiver wireless transmitter and receiver module wireless module 5
点击放大
SYN480R F115 433M wireless remote control transmitter and receiver wireless transmitter and receiver module wireless module 1
SYN480R F115 433M wireless remote control transmitter and receiver wireless transmitter and receiver module wireless module 2
SYN480R F115 433M wireless remote control transmitter and receiver wireless transmitter and receiver module wireless module 3
SYN480R F115 433M wireless remote control transmitter and receiver wireless transmitter and receiver module wireless module 4
SYN480R F115 433M wireless remote control transmitter and receiver wireless transmitter and receiver module wireless module 5

SYN480R F115 433M wireless remote control transmitter and receiver wireless transmitter and receiver module wireless module

SKU： MWC472QE2KTA

¥7.00 – ¥10.00

9486 物品 最后售出 星期
添加比较

付款方式：

描述

Product parameters:

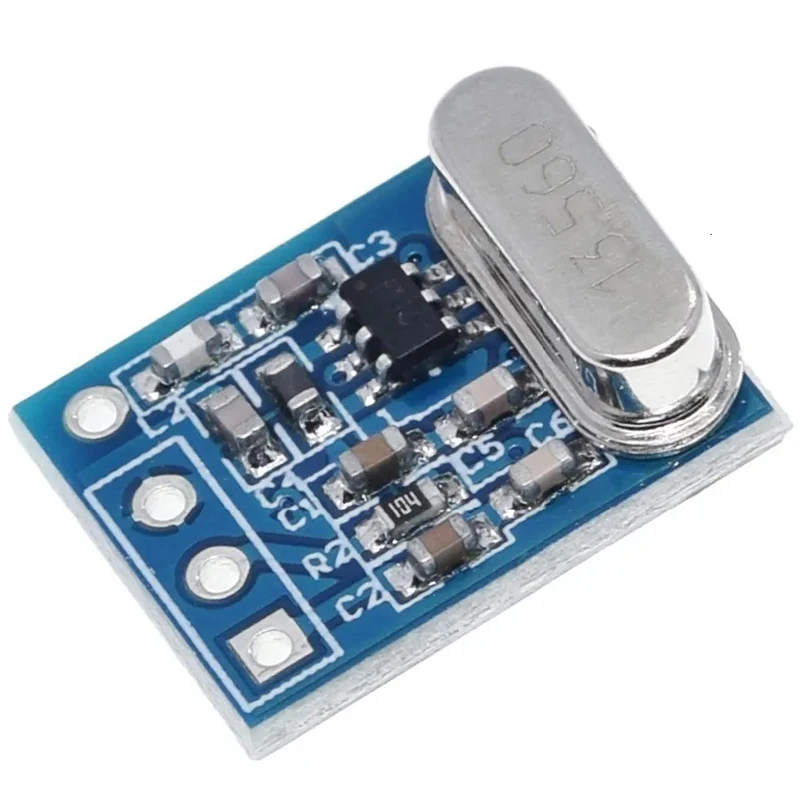

1. Onboard SYN115/F115 single-chip ASK transmitter chip
2. Module emission frequency: 433MHz
3. Module output power:<10dBm 4. Module transmission rate:<10kbps 5. Module power supply voltage: 1.8-3.6V 6. PCB size: 15(mm)x11.8(mm) SYN115/F 115 433M Wireless Transmitter Module x 1 1. Onboard SYN480R monolithic wireless ASK/OOK receiving chip 2. Module receiving frequency: 433MHz 3. Module receiving sensitivity:-107dBm 4. Module transmission rate: 2.5kbps(SWP),10kbps(FIXED) 5. Module power supply voltage: 3.3-5.5V 6. PCB size: 17.2(mm)x11.8(mm)

规格

重量 0.001 公斤
尺寸 8 × 6 × 1 毫米
Hign-concerned Chemical

None

Dissipation Power

Standard

Supply Voltage

Standard

Application

Module

Type

Module

Brand Name

Mainsci

Origin

Mainland China

Condition

新的

Operating Temperature

Standard

SYN115 Transmitting frequency

433MHz

SYN115 Output power

<10dBm

SYN115 Transmission rate

<10kbps

SYN480R Transmitting frequency

433MHz

SYN480R Receiving sensitivity

-107dBm

SYN480R Transmission rate

2.5kbps(SWP) 10kbps(FIXED)

SYN480R Supply voltage

3.3-5.5V

SYN115 Supply voltage

1.8-3.6V

SYN115 PCB Dimensions

15(mm)x11.8(mm)

SYN480R PCB Dimensions

17.2(mm)x11.8(mm)
