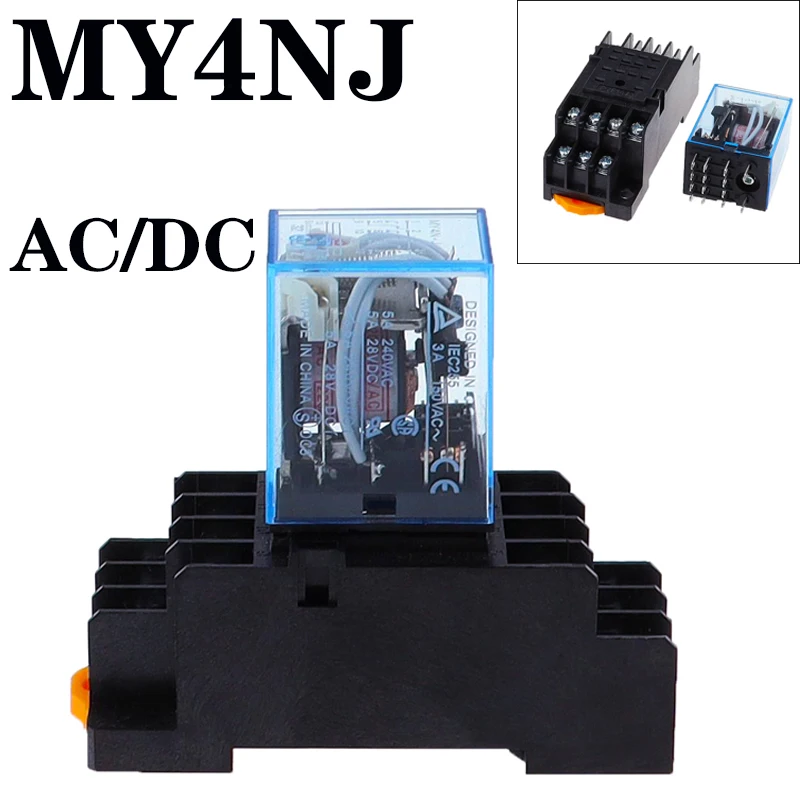

1 set MY4 small Electromagnetic relay Power Relay DC12V DC24V AC110V AC220V Coil 4NO 4NC DIN Rail 14 pins + Base Mini relay

Product Name Power Relay + Socket
Relay Model No. MY4N-J
Socket Model No. PYF14A
Action 4PDT
Coil Voltage :AC 12V 24V 36V 48V 110V 220V 380V
Contact Voltage: 5A 240V AC / 5A 28V DC
Rated current: 10A
Indication:LED Working
Contact material: silver alloy
Electrical life: more than 10W times
Rated frequency: 50Hz / 60Hz
Contact type: 4 on 4 off
Action time: less than 25ms
Operating temperature: – 25 ° C to + 55 ° C
Pin Quantity 14 Pin
Mounting Rail Type 35mm DIN Rail

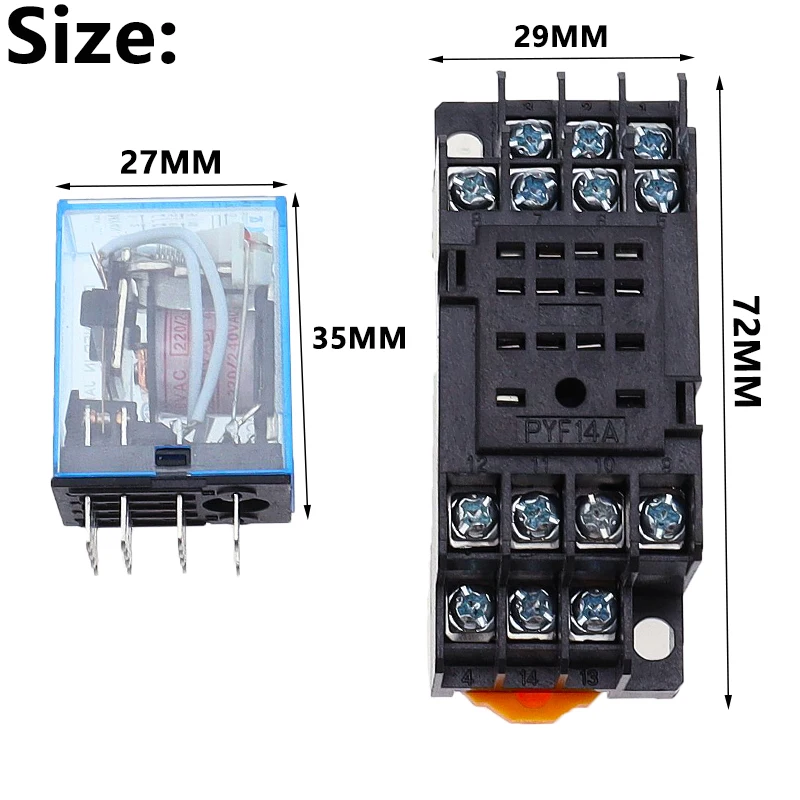

Relay Size (Approx.) 3.4 x 2.7 x 2.1cm / 1.3″ x 1″ x 0.8″ (L * W * T)
Relay Socket Size 6.8 x 3 x 2.9cm / 2.6″ x 1.1″ x 1.1″ (L * W *T)
Weight 73g
Package Content
1 x Power Relay
1 x Socket
