Specifications
Brand: Littelfuse
Series:467
Max Voltage Rating: 32 V
Ampere Rating: 0.5 A
Marking Code: F
Body: Advanced High Temperature Substrate
Interrupt Rating: 50A@32VDC
Nominal Cold Resistance: 0.187 Ohms
Opening: Very Fast-Acting (FF)

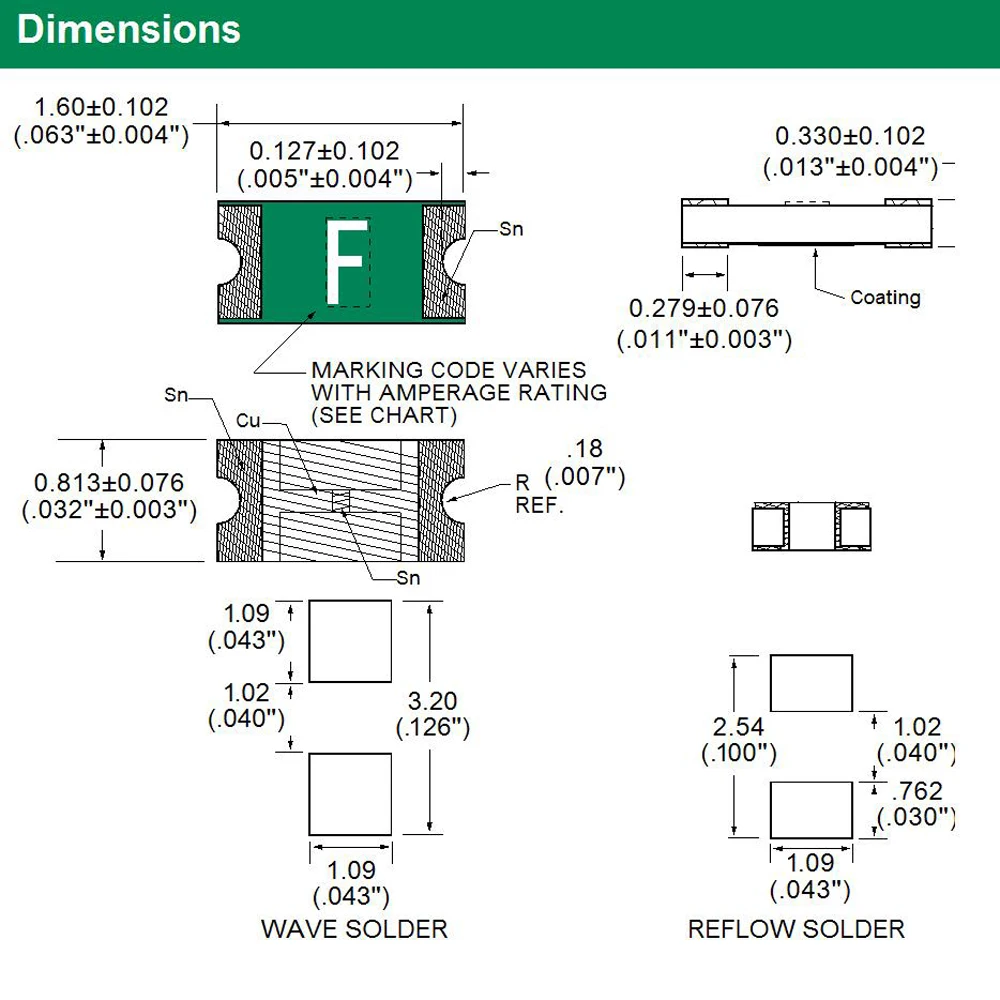

Package Size: 0603(1608)
Part No. :0467.500
Package includes

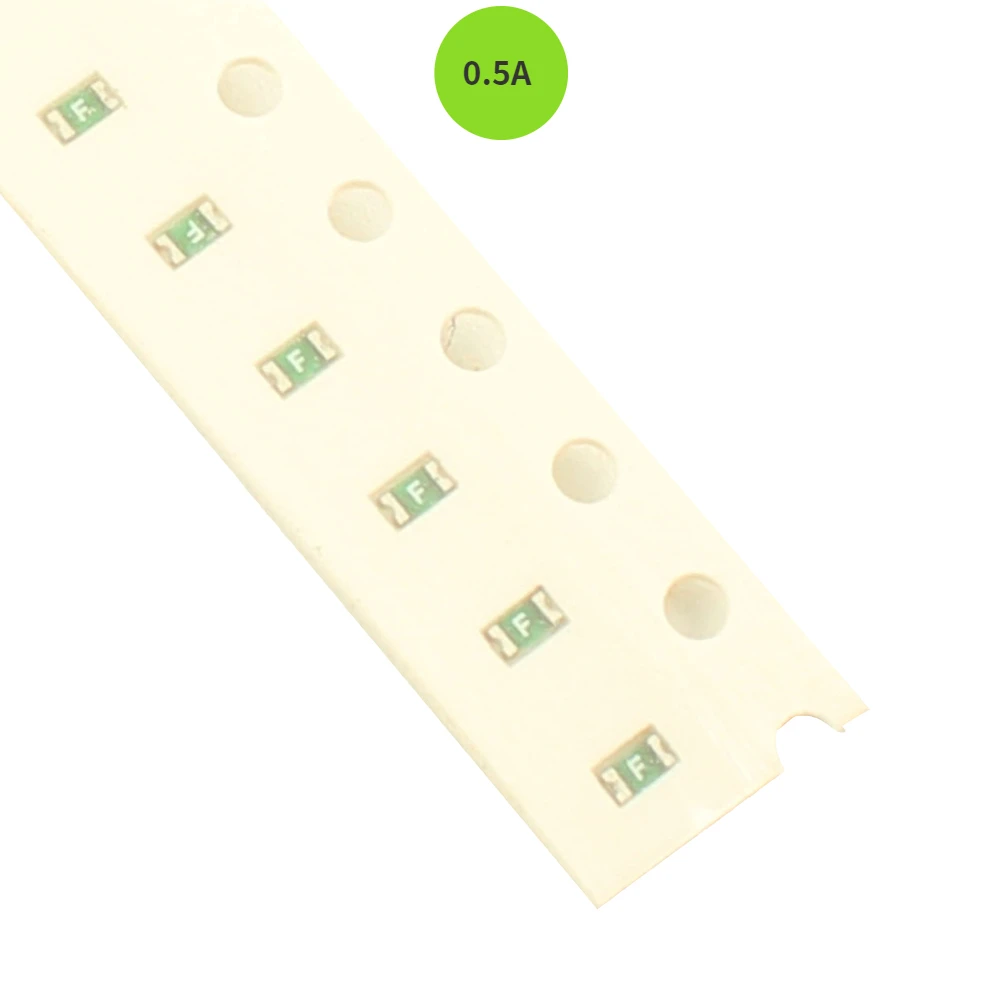

10 pcs Littelfuse 0603 0.5A 500mA SMD Fuse 32V Very Fast Acting Surface Mount 0467.500 Marking Code F
Merkmale
Compatible with leadfree solders and higher temperature profiles
High performance materials provide improved performance in elevated ambient temperature applications
Marked on top surface with code to allow amp rating identification without testing
Low profile for height sensitive applications
Flat top surface for pickand- place operations
Element covering material is resistant to industry standard cleaning operations
Mounting pad and electrical performance is identical to Littelfuse 431 and 434 Series products
Halogen free, Lead-free and RoHS compliant
Specifications
Brand: Littelfuse
Series:467
Max Voltage Rating: 32 V
Ampere Rating: 0.5 A
Marking Code: F
Body: Advanced High Temperature Substrate
Interrupt Rating: 50A@32VDC
Nominal Cold Resistance: 0.187 Ohms
Opening: Very Fast-Acting (FF)
Package Size: 0603(1608)
Part No. :0467.500
Package includes
10 pcs Littelfuse 0603 0.5A 500mA SMD Fuse 32V Very Fast Acting Surface Mount 0467.500 Marking Code F
Merkmale
Compatible with leadfree solders and higher temperature profiles
High performance materials provide improved performance in elevated ambient temperature applications
Marked on top surface with code to allow amp rating identification without testing
Low profile for height sensitive applications
Flat top surface for pickand- place operations
Element covering material is resistant to industry standard cleaning operations
Mounting pad and electrical performance is identical to Littelfuse 431 and 434 Series products
Halogen free, Lead-free and RoHS compliant
